เครื่องทดสอบสายรัดข้อมือสำหรับรองเท้า SL-032N WATERUN WristStrap FootWeat Combo Tester

Features

• Tests wrist strap and heel grounders individually and simultaneously
• No switch flipping or foot changing
• Automatic calibration

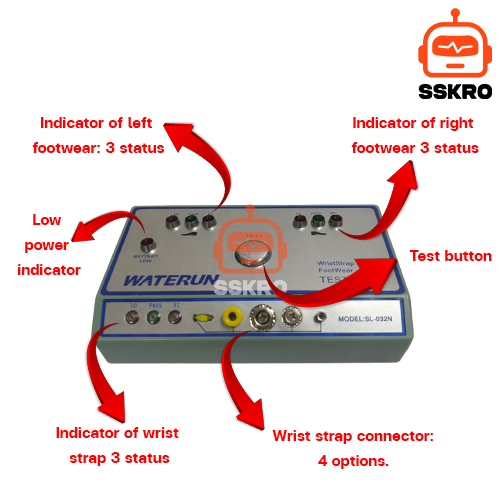

• 3 measurement status, LO(lower than default value), PASS(within default value), HI(higher than default value).
• AC or DC powered
• OK, failure warning, and low battery LED display; buzzer sound

Note: please charged in time to make sure precise

1. Long lifespan micro‐switch is adopted in the product, which can reach 1.5 million times.
2. Large capacity battery is also adopted. Fully charged battery can normally last for two days.

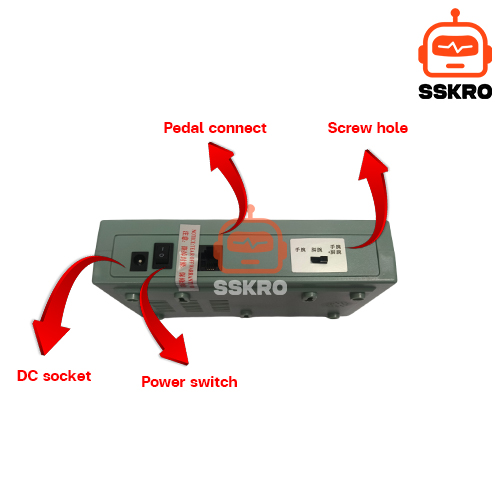

3. Terminals description

(These specifications base on domestic standards）the default value of conductive shoes is normally 100kΩ‐35MΩ, can be calibrated as requested.

Operation:

• Before testing please put the power to ON position. If abnormal display or long buzzing happens, which means the battery is low and the quiescent current is less than 12V/40mA.
• For ESD testing，stand on the paddle, wear the wrist strap and connect it to the wrist strap terminal, then press the test button.
• Please don’t press with finger nail or test with gloves.

Installation:

1. Thread the cables through the bottom of stand to the top.
2. Fix the stand and paddle with 3 sets of screw M8*30mm.
3. Connect the cable to the tester.
4. Load the stand to expected height and fix the screw.

Accessory:

• Battery charger 1pc,
• wrist strap 1pc,
• screw M8*30mm 3sets for stand,
• up and down stand screw 1pc,
• operation menu 1 pc,
• calibration certificate 1pc,
• Specification 1pc,
